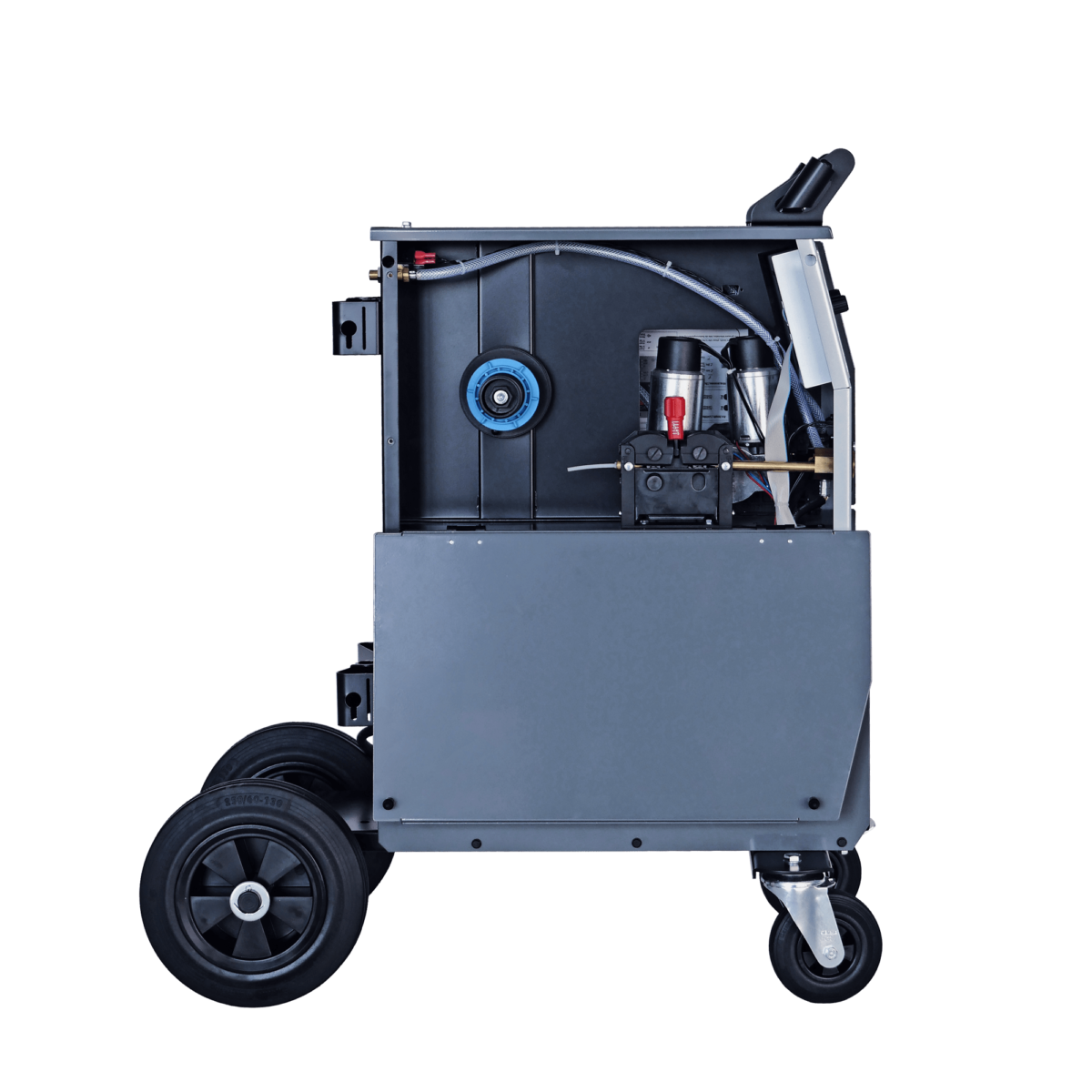

Wielander + Schill IP7-2 MIG-MAG/Aluminium Welder
Gas-Shielded Welder for steel and aluminium welding
This welding machine has a very simple, self-explanatory and intuitive operation – 2-button handling.
Equipped with a robust, industry-compliant, powder-coated sheet steel housing, 2x 4-roller drive with extra-large 37 mm drive rollers for a large welding wire drive support surface for optimum wire feed.
Ergonomic torch removal and narrow housing construction ensure efficient use in any body shop.
• automatic recognition of welding torch
• automatic “Hold-function” of welding parameters
• Hight-End wire feed unit with 4 rollers – precision drive
• 25 memories for individual welding parameters
• USB interface for Software-Updates
• small heat influx
• very good gap-bridging (gap-filling)
• Pulse- and double pulse welding (2-cycle & 4-cycle mode)
• special mode for thin sheet steel (ACT)
| Certificatons: | CE |
| Open-circuit voltage: | 96V (MIG,TIG) / 72V (MMA) |
| Gross weight: | 83.00 |
| Net weight: | 83.00, 83,000 kg |
| Temperature range: | -40…+80°C |
| Drahtgeschwindigkeit: | 0,5-22 m/min. |
| Voltage range: | 10-50 V / 0.1 step |
| Fuse: | 16 A time-lag |
| Continuous output: | 200 Amp / 24V |
| Supply voltage: | 3×400 V (+/- 15%) |
| Working temperature: | -10…+40°C |
| Packing unit: | 1 Stück / pc. |
| Lenght: | 4 m (power cable) |
| Draktvorschubrollen Ø: | 37 mm |
| Efficiency: | 85 % |
| Power supply (Cu): | 4×2,5 mm² |
| LängexBreitexHöhe: | 920x350x740 mm |
| Power factor: | 0.75 |
| Temperature class: | H (180°C) |
| Protecton category: | IP23 |
