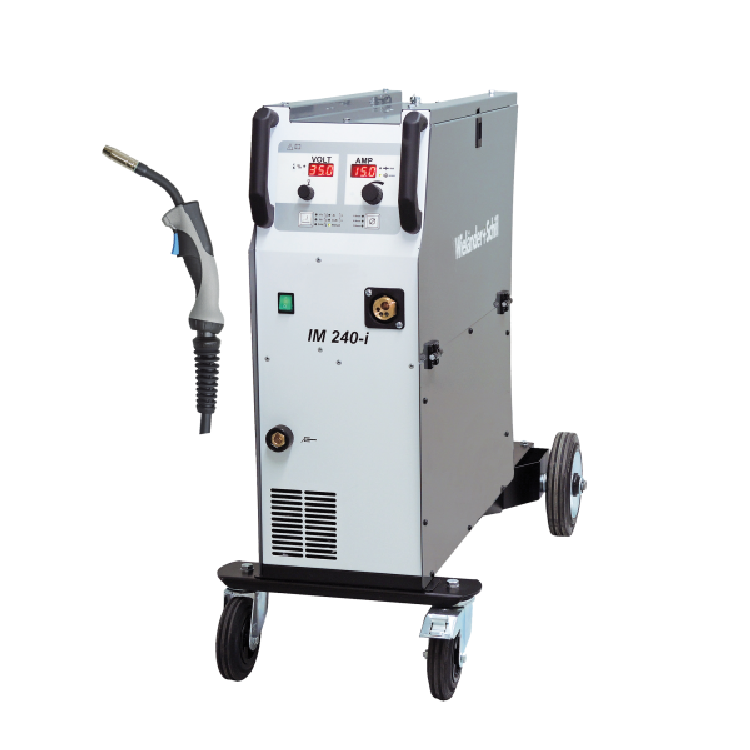

Wielander + Schill IM240i MIG Welder
Welder with inverter technology
A very straight forward and simple to use machine with simple settings. Because of the tough construction – it will tolerate very hard impacts.
MIG/MAG welding (MIG-flux-cored welding wire brazing)

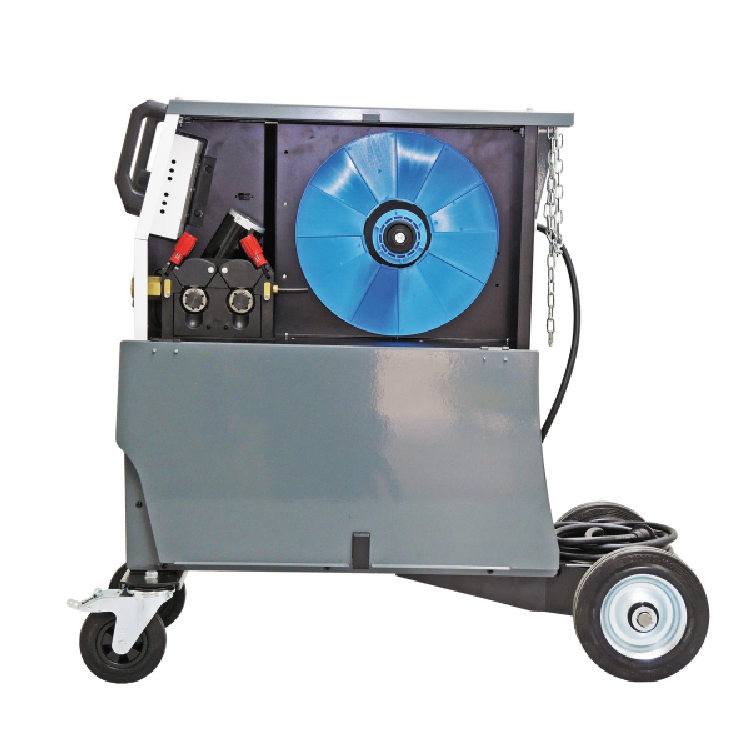

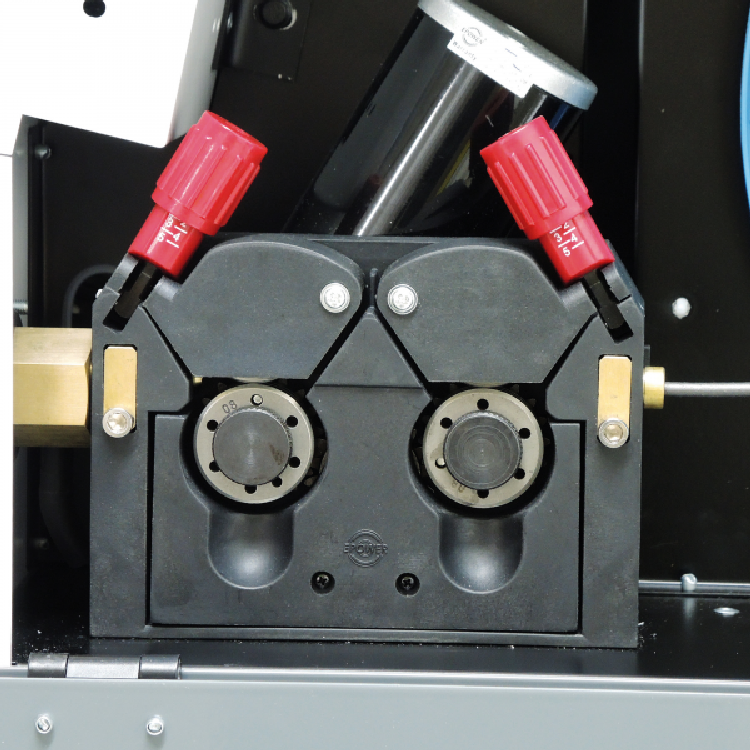

2 roller drive / 2 stroke operation
Use with D300 wire spool (max. 17 kg)

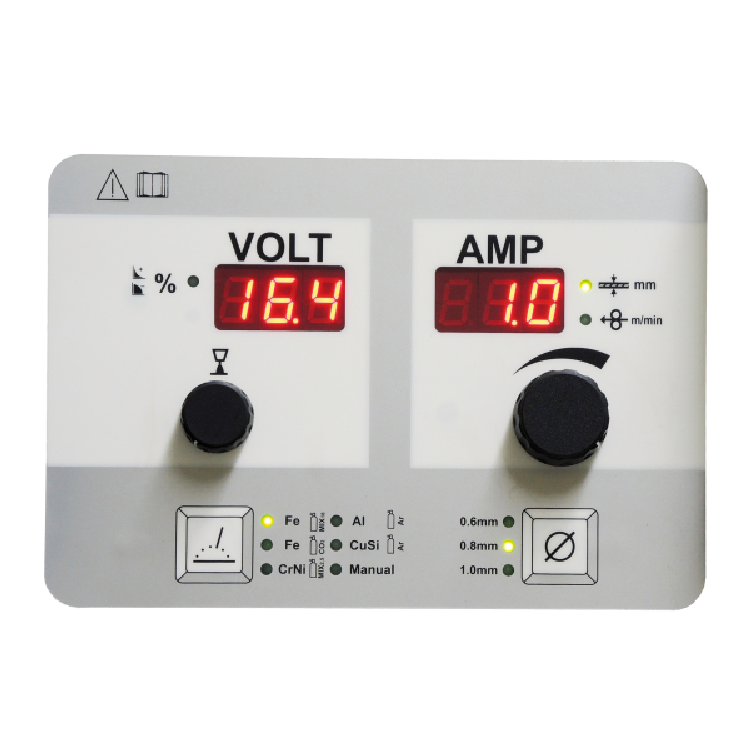

Display with hold function for welding current and tension
Dynamic pulse adjustment to remove the ball at the end of the wire.
Extremely good welding results even on very thin sheet metal.
There are no problems with steel welding on panels as thin as 0.6mm (00023 inch)
| Continuous operation: | 20%/ 0,2 kA / 24 V |
| Continuous output: | 0,12 kA / 20 V |
| Specifics: | Ø wire-drive spools 37 mm |
| Efficiency: | 87% |
| Setting ranges: | 0,020 – 0,200 kA |
| Voltage range: | 10-35 V |
| Gross weight: | 53,000 kg |
| Net weight: | 40,000 kg |
| Certificatons: | CE |
| Lenght: | 3 m (distiller pack) |
| LängexBreitexHöhe: | 900x500x840 mm |
| Open-circuit voltage: | 40,2 V |
| Power factor: | 0.75 |
| Power supply (Cu): | 3×2,5 mm² |
| Supply voltage: | 230 V (+10/-15%) |
| Protecton category: | IP23 |
| Fuse: | 16 A |
| Working temperature: | -10 to +40°C |
| Temperature range: | -40°C to +80°C |
| Temperature class: | H (180°C) |
