STAR Airopower Push/Pull System

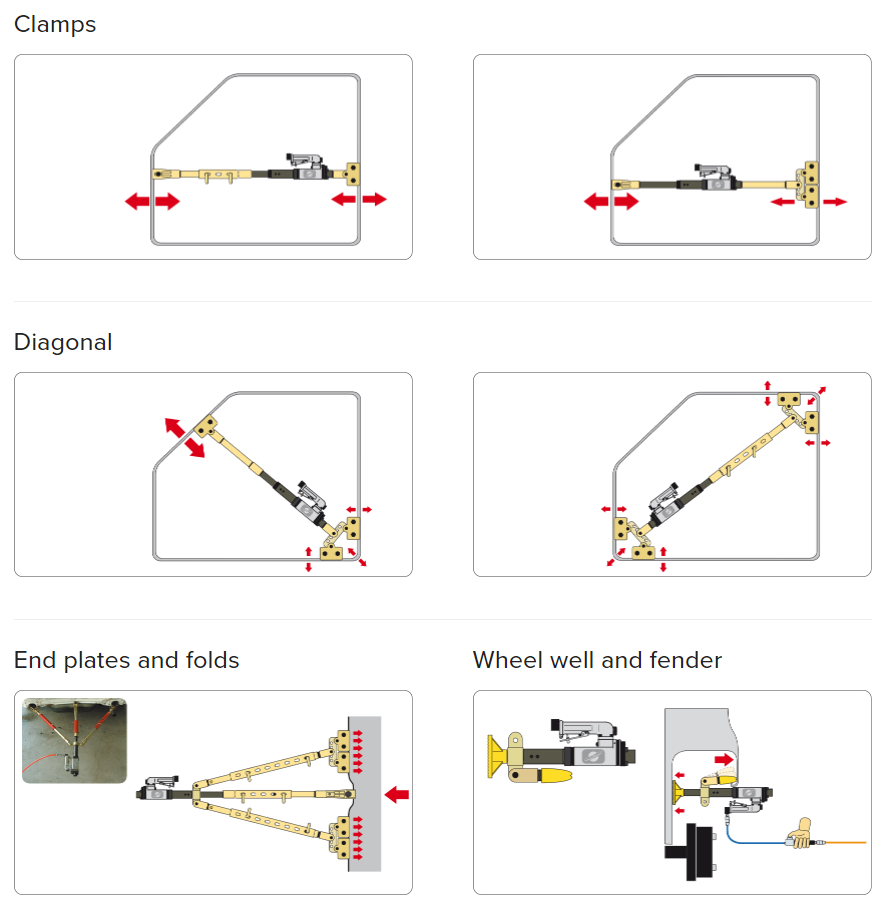

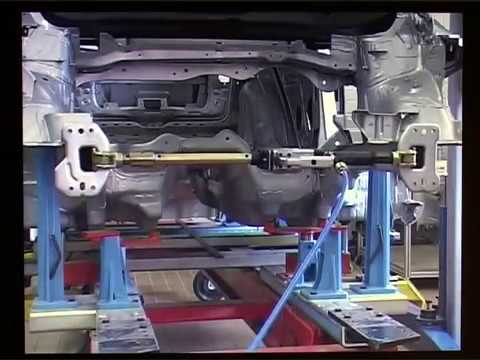

Airopower is an incredibly versatile tool; capable of 5.25 tons push and pull. It has many applications that are further enhanced with various accessory kits. Some customers have referred to it as a mobile frame machine; there are just so many pulls and pushes you can make with it. Many pulls that require using a frame machine or foot system can be accomplished on the floor or with a two post hoist in a fraction of the time.
Used in conjunction with your existing pulling equipment, it is an asset to any shops arsenal of tools. When used with Miracle system pulling tools it complements the repair process and improves efficiency while giving attritional repair options.

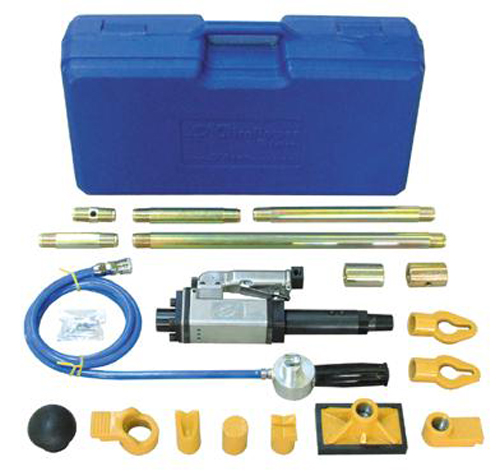

Number | Quantity | Item-ID | Description |
---|---|---|---|

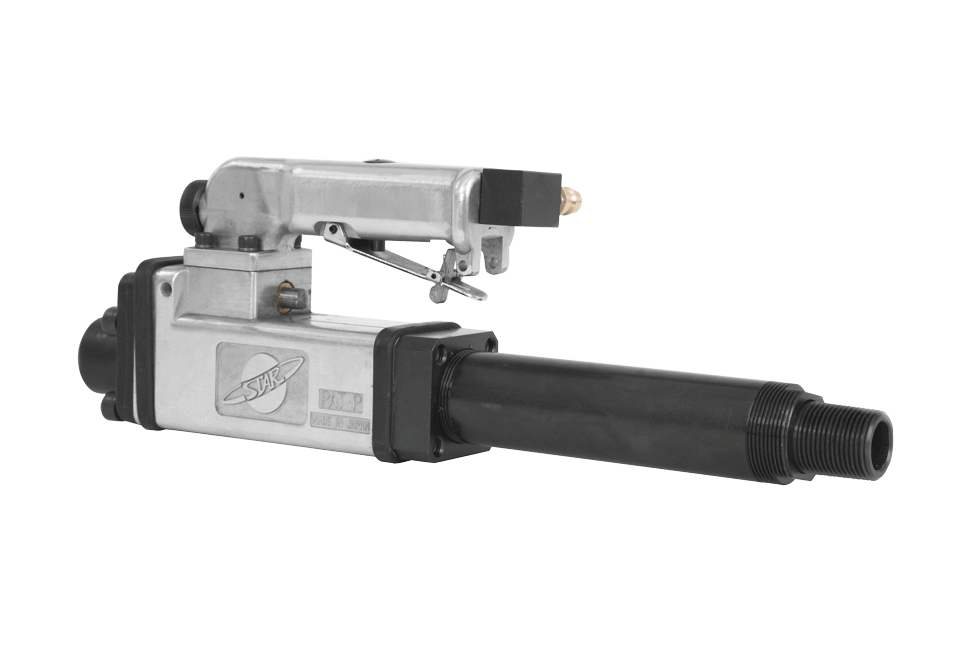

1 | 1x | AiroPower pneumatic press | |
2 | 1x | 19205P | Male connector |
3 | 2x | 19206P | Female connector |
4 | 1x | 19207P | Rubber flex head |
5 | 1x | 19208P | Serrated saddle |
6 | 1x | 19209P | Flat base |
7 | 1x | 19210P | Collar toe |
8 | 1x | 19211P | Plunger toe |
9 | 1x | 19212P | Wedge Head |
10 | 1x | 19213P | V-Base |
11 | 2x | 19214P-V | Pull hook |
12 | 1x | 19216PS | Remote controller foot/hand |
13 | 1x | 19217P | Stopper pin |
14 | 1x | 19260P | Extension tube 125 mm |
15 | 1x | 19261P | Extension tube 170 mm |
16 | 1x | 19262P | Extension tube 300 mm |
17 | 1x | 19263P | Extension tube 500 mm |
18 | 1x | 19245P-V | Blow case |

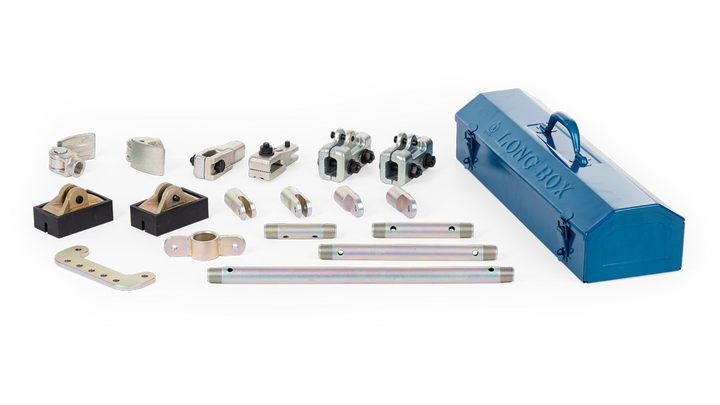

19pc Accessory Kit
33pc Accessory Kit

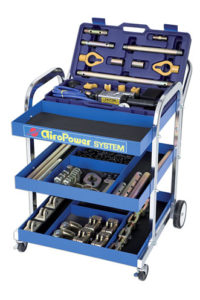

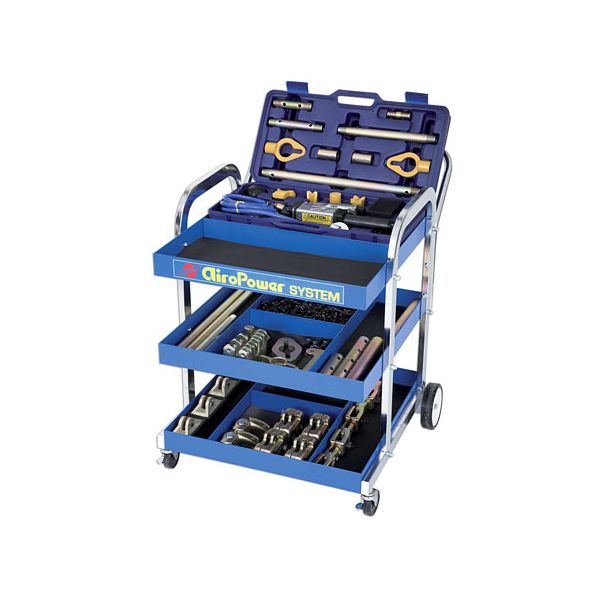

Trolley available seperately from 33pc kit for use with standard/19pc kits
Item-ID | Description | 19pc Kit | 33pc Kit |
---|---|---|---|
19220P | Adjustable body spoon | 2 | 2 |
19234P | AiroPower clamp | 1 | 2 |
19235P | Multiclamp | 1 | 1 |
19236P | Wide clamp | 2 | 4 |
19237P | Grooved foot | 2 | 2 |
19239P | Shaft 41 mm + Pin | 2 | |
19260P | Extension tube 125 mm | 1 | 1 |
19261P | Extension tube 170 mm | 1 | 1 |
19262P | Extension tube 300 mm | 1 | 1 |
19263P | Extension tube 500 mm | 1 | 1 |
19271P | Adjusting tube 290 mm | 1 | |
19272P | L-type pin | 2 | |
19273P | Connecting plate | 1 | 2 |
19274P | Single adaptor | 2 | 2 |
19275P | Twin adaptor | 2 | 2 |
19276P | Tube adaptor | 1 | |
19277P | Propeller | 1 | 1 |
19283P | Airopower Trolley | 1 | |
19286P | Miracle System Hook | 1 | |
MB-2 | Straight Bits, straight | 1 | |
LL-25-00 | Hexagon Wrench L | 1 | |
LL-23-00 | Hexagon Wrench S | 1 | |
30310 | Metal case L | 1 |
